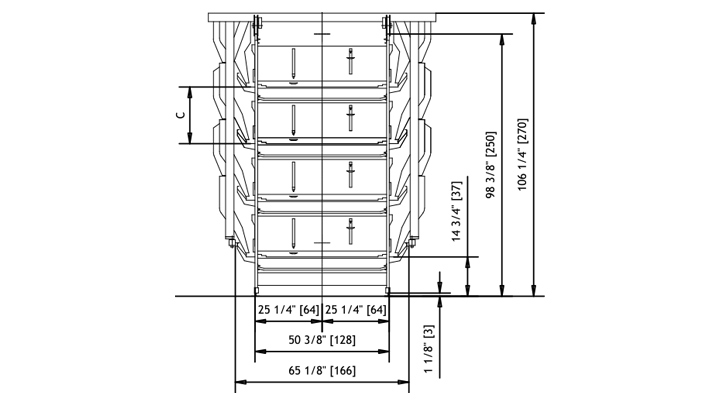

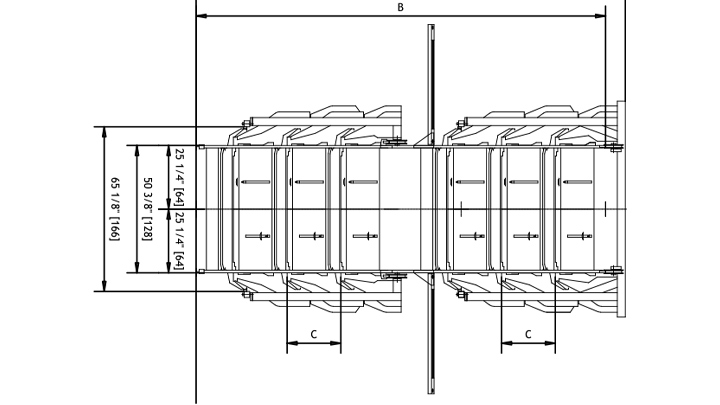

Standard cage sizes: 24wide x 20 or 25” deep x 16high (Other sizes available upon request). 2 to 6 tiers high – with or without catwalk system. Wire mesh or solid steel cage dividers. 1 x 1 or 0.75 x 1.5 wire mesh floors. Choice ofall start tiers or combination of start/grow tiers Galvanized After Weld 12 gauge wire mesh floors have proven to outlast un-galvanized mesh. All steel components are manufactured from commercial grade 275 GSM galvanized steel 8’ cage row sections with stands every 4’.VThe cage legs are manufactured using 14 gauge galvanized steel and are formed into a 1-1/2” U-channel. Adjustable foot are used for cage leveling – plus or minus 1”. Interlocking sliding doors on cage fronts – doors can be opened independently for easy access and visibility of the birds – one hand operation (spring loaded push in doors also available) Cage fronts designed to meet the requirements ofday old chicks.

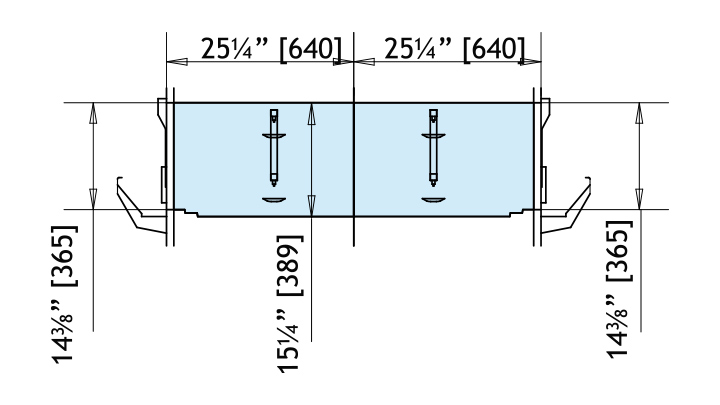

IMPEX or SHANMUGAA and stainless steel 360 degree nipple watering. 2 nipples per cage spaced 15” apart in start tier with 2- 22mm water lines for each start tier(shown with optional cups).
The adjustable water pipe runs through the cage providing adjustable watering in the start tiers. The height of the water pipe is simply adjusted by means of a winching system at the end ofthe cage rowto easily match bird growth in the start tiers. Growtiers have one shared 28 mm pipe pertier located overthe cage back with 10” nipple spacing and drip trough IMPEX or SHANMUGAA brand pressure regulator and stand kits and flush breather kit.
With help of winching system to smoothly adjust water level between 0- 12 inches by using of specially designed knuckle spanner. This will permit to have always the right height in relation to the growth of the pullet. Feed slider is remotely adjustable so shield can be moved for continued feed conservation as birds grow.
The start tier use the peep hole feed trough design with an adjustable feed slider for the start. This design allows day old chicks to eat directly from the trough. The feed trough is fastened outside the cage which eliminates entry by birds preventing droppings from contaminating the feed. A feed trough and trough hangers will easily support the weight of an average size worker, allowing for all levels of feed trough to be used as a step. The feed slider is simply adjusted by means of a winch at the cage rowend to easily match bird growth.
Frame with sliding wheels on top rails. Galvanized sheet metal hoppers with profiles to avoid the feed bridge. Mobile levelers with feed output adjustment. 1 HP gear motor to be used for moving feed with hopper.
Transmission unit placed in top of the trolley unit. Automatic stop limit switch system. Safety system with automatic stop in case oftrolley unit cross the overlimit.
