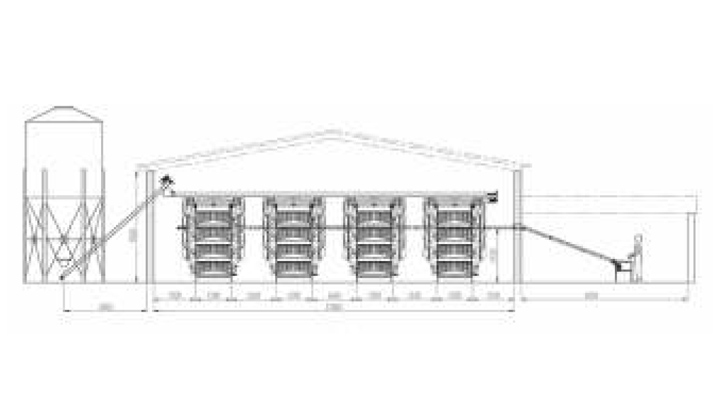

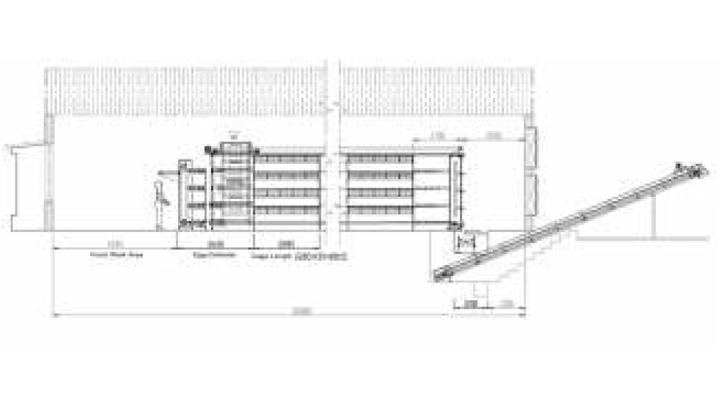

Laying Cages

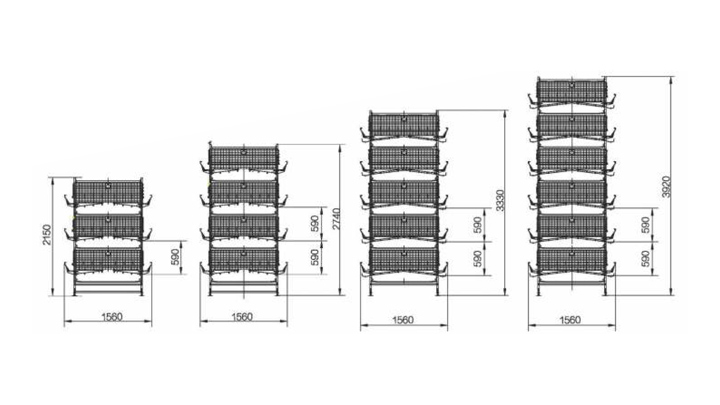

Cage Specification

Standard cage sizes 24" wide x 20" deep x 18/21" high (Other sizes available upon request ) 2 to 8 - with or without catwalk system. Full width sliding doors provide easy to access and visibility to the birds. Wire mesh or solid steel cage dividers. Galvanized after weld 12 gauge wire mesh floors have proven to floor support system provides a walking effect reducing bird leg and foot injuries. The walking floor design also improves egg quality resulting more saleable eggs. All steel components are manufactured from commercial grade of 275 GSM galvanized steel. Trough mounted step rail/bird cart guides (optional)

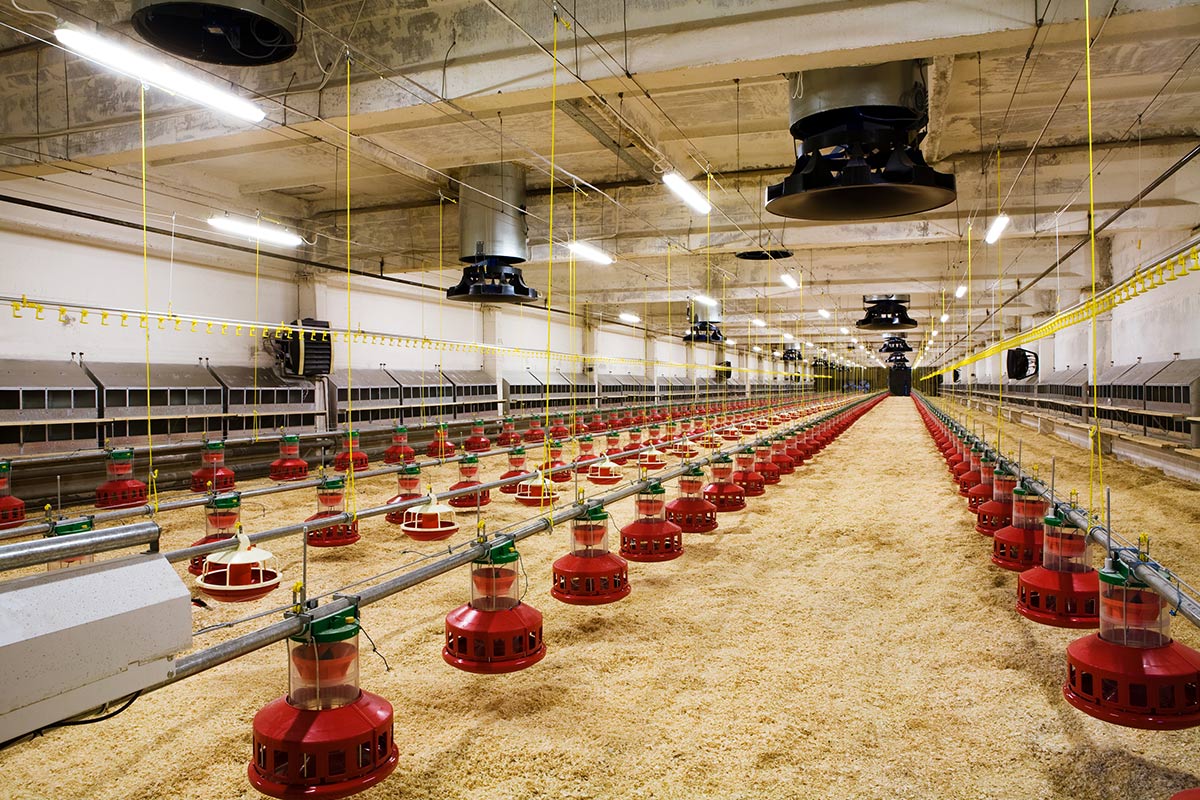

Trolley Feeding

Poultry feeding systems are made of high qual ity and durable materials Trolley feeding system possesses lower power consumption and requires less maintenance. Trolley feeding systems mix the feed in the feed hopper and feed trough evenly and then distribute the feed evenly

Manure Removal

The drive units are constructed from a galvanized steel frame of 3 mm thickness with assembly and shipped pre-assembled for ease of installation. Curtains on the drive units direct the manure to the cross pit below. A .040” (1mm) thick UHMWPE belt contains and transports the manure from each tier.

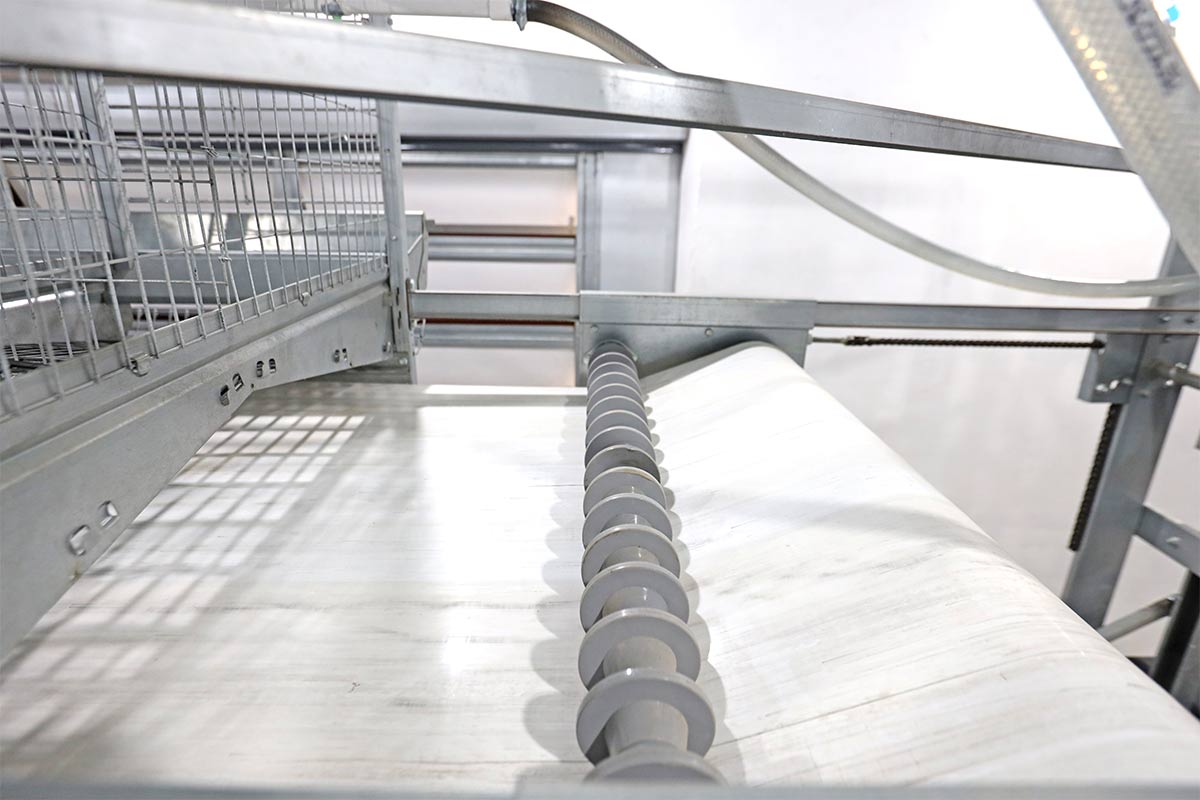

The drive unit is designed to powermanure belts in excess of400 foot rows with minimal belt tension – greatly reducing stress on the belt and seam. A minimal number of motors and gear boxes per roware used to powerthe manure belts at 15 feet per minute. Extra wide manure rails help prevent manure from entering the cage or feed trough of the tiers below. The manure belt idler end incorporates an auger cleaner system powered by the idler roller which removes dirt and feathers from between manure belts (optional).

Automatic EGG Collection System

96mm woven polypropylene egg belts move eggs from the cage row to the collectors at up to 9 feet per minute. The belts are driven by a 4.5” polyurethane roller with pinch roller which give posi free operation. Each Elevator is factory assembled to simplify installation. Eggs from the 96mm egg belts are transferred to a short durable PVC conveyor set which will deposit the eggs, non - stop one at a cradle – egg dosing is not required. With the openness of the Elevator, soft shell eggs, manure or dirt on the egg belt will fall through the PVC conveyor set into a collection tray on each level. The Shanmugaa Elevator offers adjustable unloading height to fit an overhead or floor mounted egg conveyors, and end of row hand packaging tables.

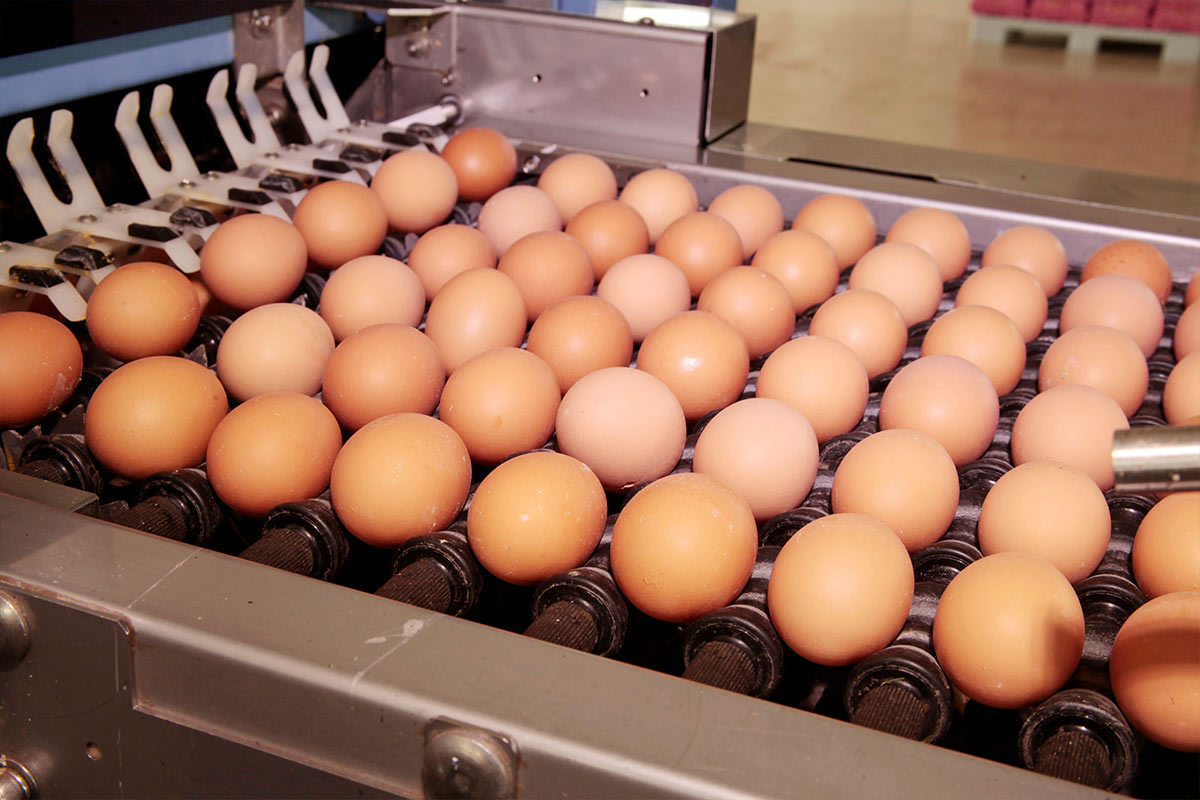

EGG Elevator

Infinite widths are available. Infinite heights for collection from multi tier to store place of layer cage building. PVC transfer hollow rods and transferparts engineered forgentle handling. Variable speed control offerfor change the speed as working convenience.

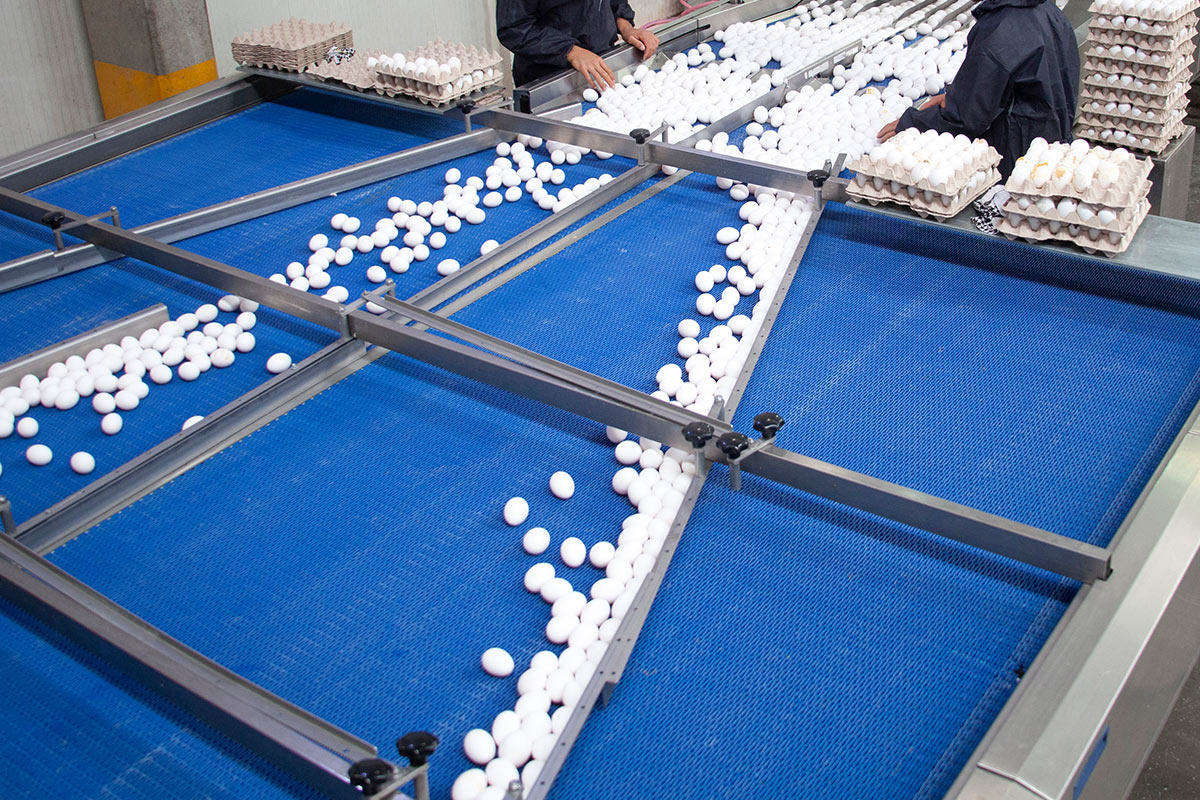

EGG Cross Conveyor

18 or 20 widths. Straight or curves (Continues curves up to 180 degree) Incline / declines from 0 to 22.5%. Mountable at floor or ceiling height or anywhere in between. Intermediate drive units available forlong runs. Variable speed

Egg Protector

The Egg protector placed before at starting of egg belt. It will slows down the eggs when its roll from the cage on to the longitudinal egg belt. This is accomplished mean of thin wire installed parallel to egg belt. This wire is raised and lowered by using pneumatic ormanually at wheneverto start the egg collection.

Technical Data
