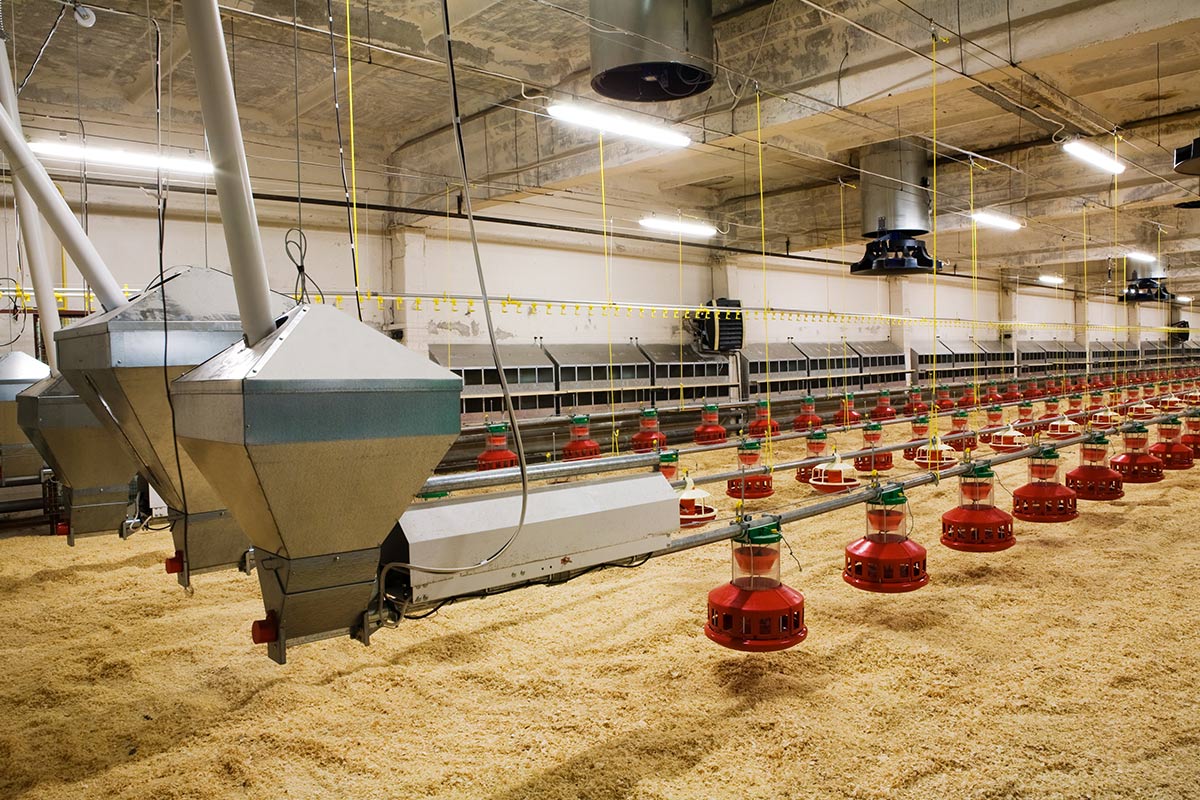

Frame with sliding wheels on top rails. Galvanized sheet metal hoppers with profiles to avoid the feed bridge. Mobile levelers with feed output adjustment. 1 HP gear motor to be used for moving feed with hopper.
Transmission unit placed in top of the trolley unit. Automatic stop limit switch system. Safety system with automatic stop in case of trolley unit cross the overlimit.
Simple design features few moving parts, corrosion-resistant PVC- coated cable and permanently sealed wheel bearings for reliability. Takes up less aisle space than similar feeders. Uses as little as 1 HP motor to feed an entire cage row. Soft start feature reduces strain on power unit. Feeder includes enough hopper capacity to feed in both directions of travel, and is easy to operate manually in areas with unreliable power. Feed weight is controllable wit accuracy of plus or minus 4 gram per open, and feeder includes both individual tier shut-offs and fill system shut-offs to prevent spillage. Hopper view windows provide feed level visibility and permit easy confirmation of proper filling of hopper. Feed “pushers” at each tier reduce feed wastage while keeping feed in front of birds; a feed level “sled” reduces caked feed. Support system from cage legs helps align feeder with the cage row, minimizing the possibility of derailment. A rotational sensor monitors whether feeder is running and serves as a safety shutoff for the power unit. System design does not require placement of power units in cages, unlike some other systems. Can feed entire cage row or house at once for reduced bird stress.

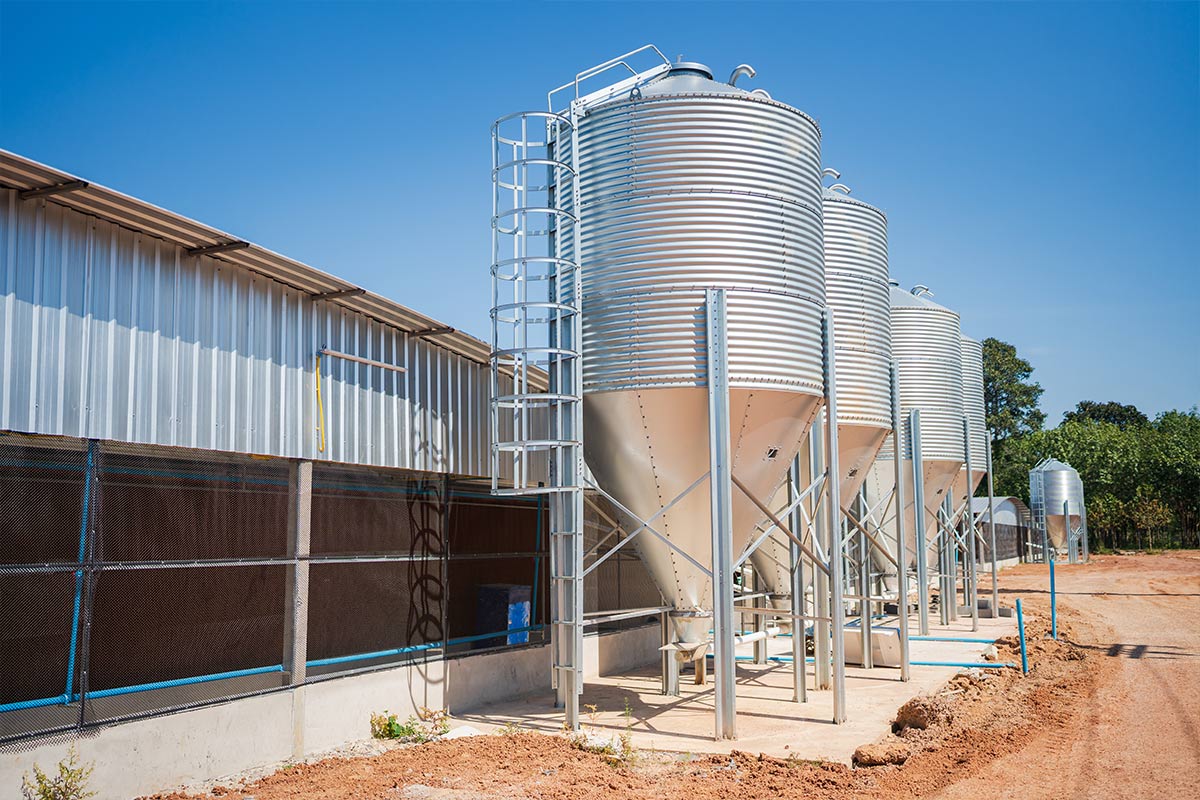

The high quality galvanization minimum 275 GSM and the corrugated profile an excellent light reflection and prevent any greenhouse effect inside the silo. Mechanical filling kit is standard in all in our silos. Pneumatic filling is optional, ifrequired both ofthe filling alternatives are available in a single silo.The standardfeedviewwindowonthe silo body allows you to check the feed level of silo.The standard ladder, safety cage and handrail are designed for maximum safety. Extended ladderto the ground level is also available as an option for all of our silos.
Transporting augers to usedto transport the required amount of feed to the hoppers inside the house through the manual or automatic dropkits. The feed distribution program that able the distribution of the feed to the right hopper at the required time with the required amount is done through the suitable processor. The Shanmugaa mechanical batch weigher has a simple and solid structure. it operates for many years without causing any problem.Feed quantity in the silo can be monitored and restored when used with appropriate controller. Restricted feed delivery is possible. Flex augers dia 75-90-125 mm with plastic tube and plastic elbows.Flex augers dia 90-125 mm steel tube with hardened steel elbows for feeders filling on cage systems.
The woven conveyor belt is PVC coated for normal weather conditions but other options of belts can be supplied to workout door attemperature conditions ofabnormal. The high speed of 60 mts/min ofthe cross belt conveyor with 500 mm wide makes the cleaning operation very fast.The vertical manure conveyor with the rubber bonded 6 mm thickness including the cord cloth running on galvanized construction and the front rear rollers with reducer geared motor.The motor for th emanure conveyor is covered by the galvanized steel sheet s in case ofthe strong sunshine , rainy,water etc.Andthe power can br changed bythe different conveyor length. The horizontal manure conveyor with the 6 mm thickness of rubber bonded cord cloth running on galvanized rollers with safe of galvanized side sheet shanged with heavy floor channels in down side of the main rollers in manure collecting places. The motors to be run by sequence option for horizontal conveyor to the inclined conveyor. The inclined conveyor places as per the level of floor at outside of the house not exceed of 30 degree for smooth travel of manure.
